Product Detail

Description

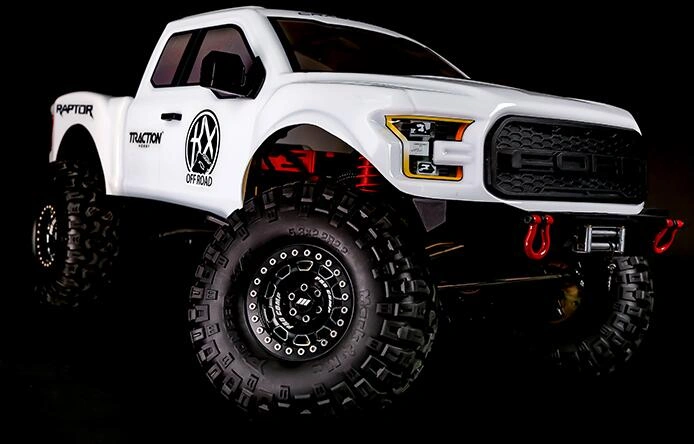

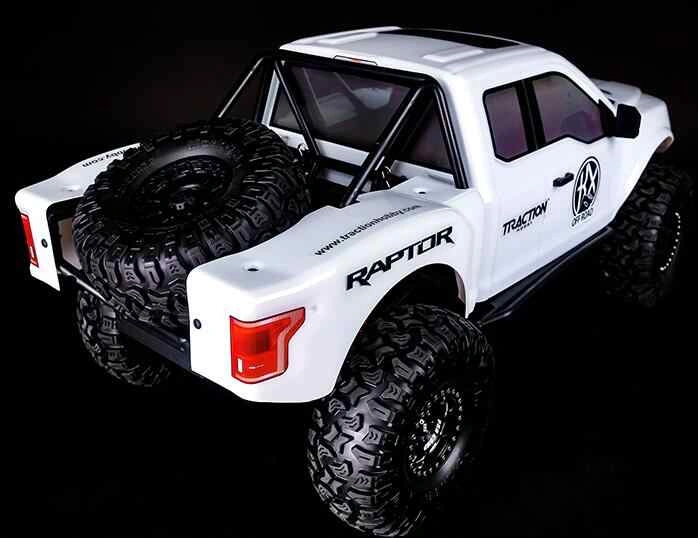

Brand new Traction Hobby Cragsman C Ford Raptor F150 RTR Crawler (White)  See pictures for what is included

 This is a awesome looking and performing Truck, amazing quality

Pictures of Blue on are just to show how it looks assembled. You will receive the brand new white one you see in the pictures

Power

Motor:RS550 37T Brushed Crawler Motor

ESC: HW-WP-860-DUAL-RTR 60A brush ESC

Battery: Support 7.4V 2S Lipo battery/7.4V Li-no battery/7.2V Ni-Mh battery(Battery Not included)

Parameter

Scale: 1/8 Large Scale

Car size: L-670mm*W-302mm*H-305.5mm

Wheel base: 374mm            Wheel track: 245mm

Chassis underground clearance: 83mm          Minimum underground clearance :45mm

Gross weight: 8.30KGS(RTR)/8.10KGS(ARR)

Frame

Chassis frame:Multi-Connection design  1.2mm thickness formed steel

Suspension :Full metal alloy front and rear straight axle/non independent

Angle: Approach  Angle: 63°/ Departure Angle: 41°/Passing Angle: 52°

Shock Absorber:Metal adjustable hydraulic shock absorber with oil filling

Body shell:Traction Hobby design-PC split type shell(THO020 Cragsman C body set)

Driving

Pinion gear:14T       Spur gear:60T Nylon tooth

Driving:4WD /2WD Shifting transmission system

Wheel :2.2inch plastic rim (PROCOMP authorized) and 5.3X2.2R2.2 super soft tires (Mark Ma authorized)

Electronic equipment

Steering servo : TH2016 (20KGS Degree/25T)

Front diff lock servo : TH2503(3KGS Degree/25T)

Rear diff lock servo : TH2503(3KGS Degree/25T)

Transfer box  servo : TH2503(3KGS Degree/25T)

Two speed servo : TH2503(3KGS Degree/25T)

Transmitter: Traction Hobby design-FS-GT5 Transmitter 6 channels

Bonus

Body sticker*1set

Instruction book*1pc

L wrench set*1set

4 Way wrench *1pc
